Shed Wiring: Essential Installation Tips for Your Electrician

If you own a shed on your acreage property and are tired of relying on extension leads from your home, it’s essential to consider having it properly wired. Whether you have a simple storage shed needing just a light and a power point, or a fully equipped workshop where you operate welders and compressors, there is a correct procedure to follow. In NSW, the only legal and safe way to achieve this is by hiring a licensed electrician.

This article outlines the steps involved in providing power to your shed, what your electrician will need to install, and what the costs are likely to be in the Mid North Coast region.

Commencing the Process with the Cable Run

The most critical aspect of any shed wiring project is the establishment of a reliable power source from your main switchboard to the shed. Depending on your property size, this distance may range from 30 to 100+ metres. The longer the cable run, the more significant the cable size required to accommodate voltage drop effectively.

You essentially have two viable options:

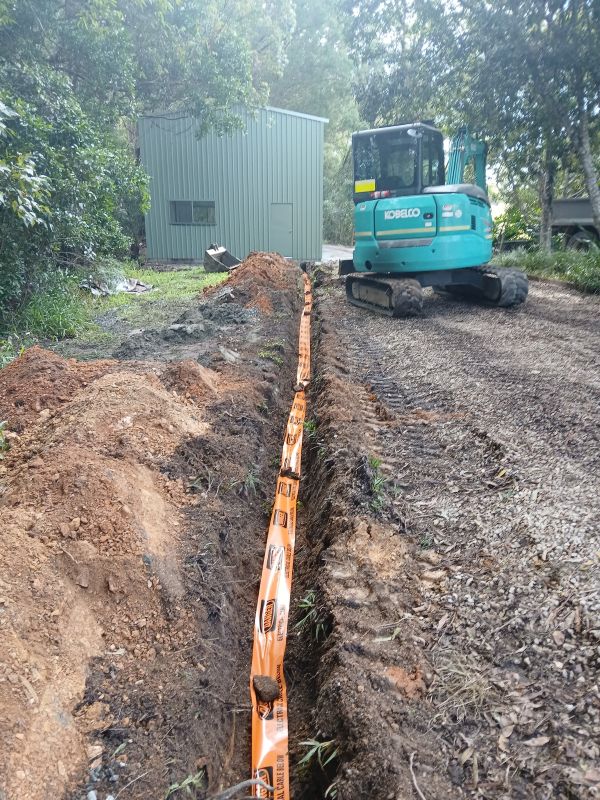

• Underground cable run — This is the preferred and neatest option. A licensed electrician will install heavy-duty cable through orange conduit, buried at least 500mm deep (or deeper if vehicles will traverse the area). This method protects the cable from weather elements, animals, and falling branches, making it the ideal choice for most acreage properties.
• Overhead cable run — Although less common today, this method may be necessary if you encounter solid rock or difficult terrain that complicates trenching. Overhead installations require adherence to proper clearance heights and support poles, which can increase costs.

For the majority of properties around Bellingen, Coffs Harbour, and the Mid North Coast, the underground option is typically the best choice. Your electrician in Bellingen can evaluate your site and recommend the most effective route.

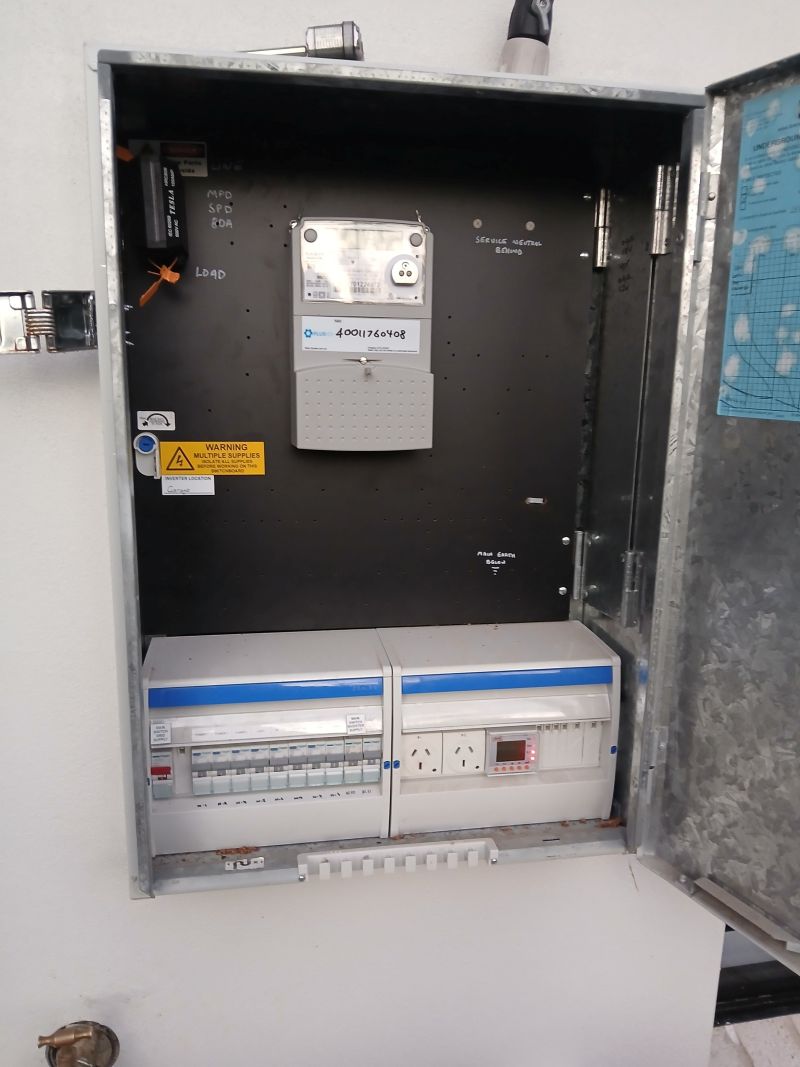

Establishing a Dedicated Sub-Board for Your Shed

It is inadequate to simply run a single cable to the shed and expect to plug in devices. Any shed that is receiving a proper power supply must have its own dedicated sub-board, also referred to as a distribution board. This setup acts as a mini switchboard inside the shed, managing all the electrical circuits effectively.

Your sub-board will comprise the following:

• Main switch — This allows you to isolate all power to the shed independently from the main house.
• RCDs (safety switches) — These devices are mandatory under NSW electrical regulations. They instantly cut the power in milliseconds if a fault occurs, which is crucial in a shed environment often exposed to moisture, dust, and potential damage.
• Circuit breakers — These provide individual protection for each circuit in your shed, including lighting, general power, and dedicated tool circuits.

If your house's main switchboard is older, your electrician may also suggest upgrading the switchboard to accommodate the additional load directed to the shed.

What Equipment Should Be Installed Inside the Shed?

The specific installations made by your electrician inside the shed will be tailored to its intended use. Here’s how these installations typically break down.

Setting Up a Basic Storage Shed

For a shed primarily used for storing tools, a ride-on mower, or general equipment, consider the following:

• LED batten lights — One or two ceiling-mounted LED battens can effectively illuminate the entire space. Your electrician can provide advice on the most suitable lighting layout based on the shed's dimensions.
• Two to four general power points — This amount is sufficient for plugging in chargers, radios, or a drop saw whenever needed. Standard power points and switches will operate on a single circuit.
• External light — An outdoor-rated LED light above the door ensures that you can access the shed without fumbling in the dark.

Installing a Powered Workshop Shed

If you frequently use power tools such as drop saws, bench grinders, or dust extractors, your wiring requirements extend beyond basic setups:

• Multiple circuits — Create separate circuits for lighting, general power, and specialised power tool outlets. This setup prevents the lights from flickering every time you activate a saw.
• Higher-rated power points — Install 15-amp or 20-amp outlets to accommodate heavier tools effectively.

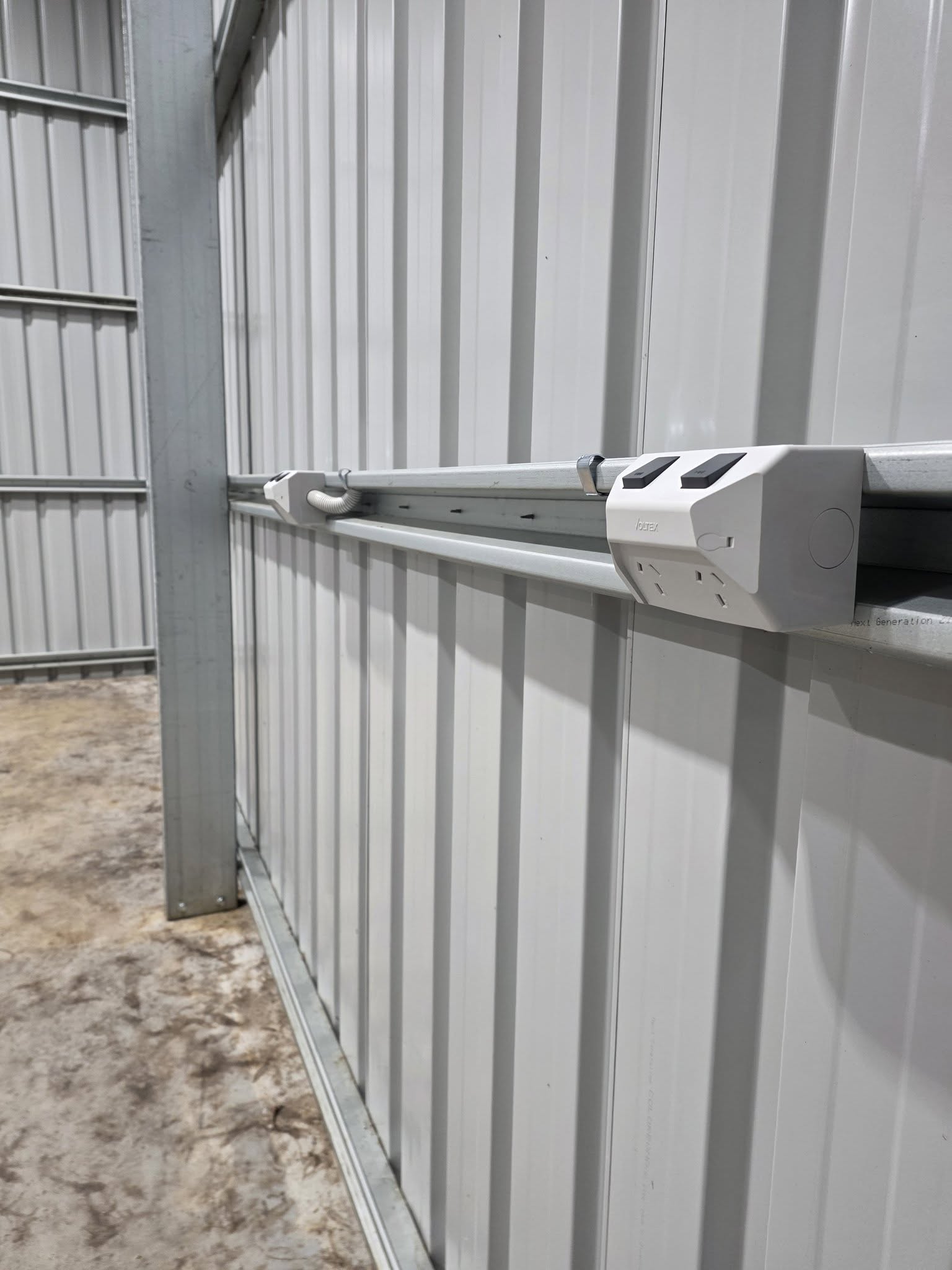

• Increased number of power points with optimal placement — Ensure outlets are positioned at bench height, rather than only at skirting level, to facilitate ease of use based on your workbench arrangement.

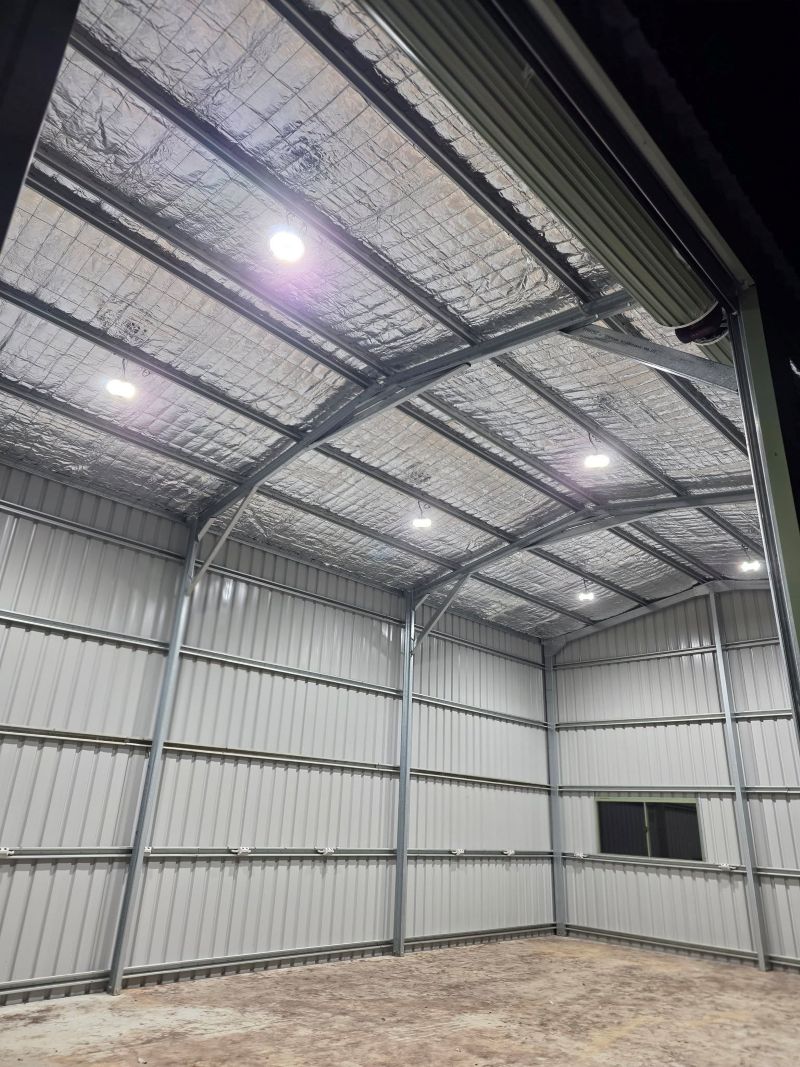

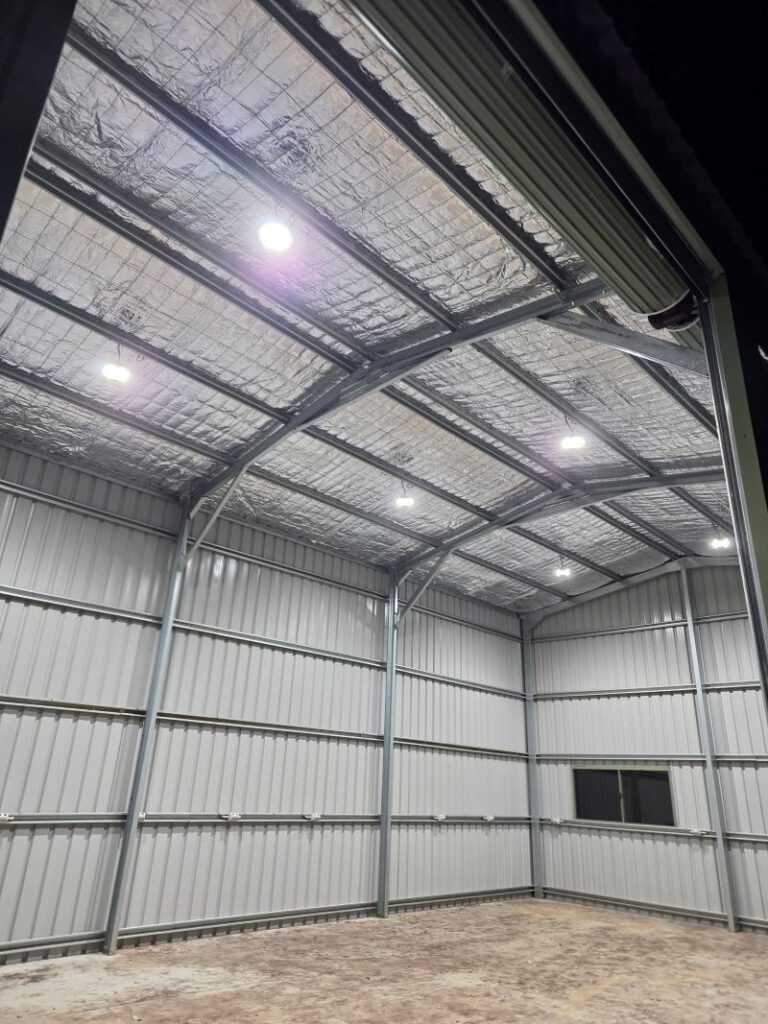

• Dedicated lighting — Provide brighter, targeted lighting over work areas, using LED high-bays for larger sheds.

For comprehensive guidance on establishing dedicated circuits for heavy tools, check out Powering a Rural Workshop — Dedicated Circuits for Heavy Tools and Equipment.

Equipping a Full Workshop with Three-Phase Power

If your activities involve heavy machinery such as large compressors, lathes, MIG welders, or commercial-grade equipment, relying on single-phase power may not be sufficient. This is where three-phase power becomes essential.

Three-phase power provides a more stable and higher-capacity power supply. Your electrician will need to:

• Organise a three-phase supply from your energy distributor (this process can take several weeks in the Mid North Coast area).
• Install a three-phase sub-board in your shed, complete with the necessary breakers and RCDs.
• Utilise heavier cabling — bear in mind that three-phase cable runs can be costlier, particularly over extended distances.
• Set up three-phase outlets — These heavier-duty sockets are rated specifically for the equipment you plan to operate.

If you’re uncertain about whether you require three-phase power, read Do I Need Three-Phase Power on My Property? — this resource discusses when it is beneficial and when a properly configured single-phase system will suffice. We also provide full three-phase switchboard installation if that aligns with your needs.

Essential Surge Protection for Your Shed

Properties on the Mid North Coast frequently experience intense lightning storms. A direct or nearby strike can potentially damage everything in your shed, including tools, chargers, fridges, and any devices plugged in.

Investing in a reliable surge protection device, installed within the sub-board, serves as inexpensive insurance. It absorbs voltage spikes before they can reach and damage your equipment. For sheds containing costly tools or a workshop setup, this measure proves invaluable.

If your property also utilises a generator for backup power, your electrician can install a generator changeover switch, ensuring that both the shed and the house can safely switch to generator power during outages.

What Are the Requirements for Council Approval and Compliance?

Here are several important considerations:

• All electrical work in NSW must be performed by a licensed electrician. There are no exceptions to this rule. While you may dig the trench yourself to save on labour costs, all electrical work — including cabling, connections, and sub-board installation — must be handled by a licensed contractor who will issue a Certificate of Compliance (CCEW).
• Depth of underground cable must adhere to AS/NZS 3000 (the Wiring Rules), a standard your electrician will ensure compliance with.
• If the shed is newly constructed, you may need development approval depending on your local council and the size of the shed. While the electrical work itself might not require a separate permit, the overall construction may.

Hack-It Electrical Solutions is a proud holder of the NSW Electrical Contractor Licence #230609C. We provide a compliance certificate for every job we complete.

Understanding the Costs of Shed Wiring on Acreage

Each shed presents unique challenges — including distance from the house, whether you require single-phase or three-phase power, the number of circuits needed, and soil conditions impacting trenching. However, here’s a realistic cost guide for the Mid North Coast area:

• Basic shed wiring (lighting + a few power points, short cable run) — Starting from $2,500
• Powered workshop shed with sub-board and multiple circuits — Starting from $4,500
• Full workshop setup with three-phase power, dedicated circuits, and surge protection — Starting from $8,000+

Be aware that longer cable runs (50m or more), rocky terrain requiring specialised equipment, or upgrades to three-phase supply will all increase costs. The most effective way to obtain an accurate estimate is to have your electrician visit your property, assess the cable route, and gain a clear understanding of your shed's intended use.

If you want a straightforward quote for your specific setup, feel free to call us at 0402 079 803 or contact us here.

Commonly Asked Questions About Shed Wiring

Can I Wire My Shed Myself in NSW?

Absolutely not. All electrical work in NSW must be conducted by a licensed electrician. This includes tasks such as running cables to the shed, installing the sub-board, power points, lighting, and more. Engaging in DIY electrical work is illegal and poses significant dangers. Your electrician will issue a Certificate of Compliance once the work has been completed.

How Deep Must Underground Cable Be Buried?

According to the Australian Wiring Rules (AS/NZS 3000), underground cable installed in conduit should be buried a minimum of 500mm deep under normal conditions. If vehicles are expected to drive over the route, the cable must be buried deeper, typically around 600mm or more. Your electrician will determine the appropriate depth for your specific property circumstances.

Do I Need a Separate Meter for My Shed?

In most instances, the answer is no. The shed’s sub-board connects back to your main house switchboard and draws power from the same meter. A separate meter is only necessary if the shed serves as a standalone dwelling or commercial premises — this consideration involves discussions with both the council and your energy distributor.

How Long Does It Take to Wire a Shed on Acreage?

A basic shed wiring job, which includes trenching, cable installation, sub-board setup, lighting, and power points, typically takes between one to two days once the trench is prepared. If you're digging the trench yourself, your electrician can provide guidance on the precise route and depth before you begin. Keep in mind that three-phase jobs may take longer due to the need to arrange the supply connection with the distributor first.

Can I Run Power From the Shed to Other Buildings?

Yes, you can. However, each additional building will require its own appropriately rated cable run and may need its own sub-board depending on the load. Your electrician can design a comprehensive layout across multiple buildings to ensure that the cabling and switchboard capacity are adequate from the outset, rather than trying to add components later and potentially creating issues.

Ensure Your Shed Wiring is Done Right

If you are situated on acreage near Bellingen, Coffs Harbour, Sawtell, Boambee, or anywhere across the Mid North Coast, Hack-It Electrical Solutions is here to assist you in setting up your shed correctly — whether it involves a basic lighting and power setup or a comprehensive three-phase workshop installation.

Give us a call at 0402 079 803 or reach out through our website to schedule a site visit. We will survey your property, determine the optimal cable route, and provide you with a straightforward quote.
