Larger Gutters for Your Central Coast Home: A Sizing Guide

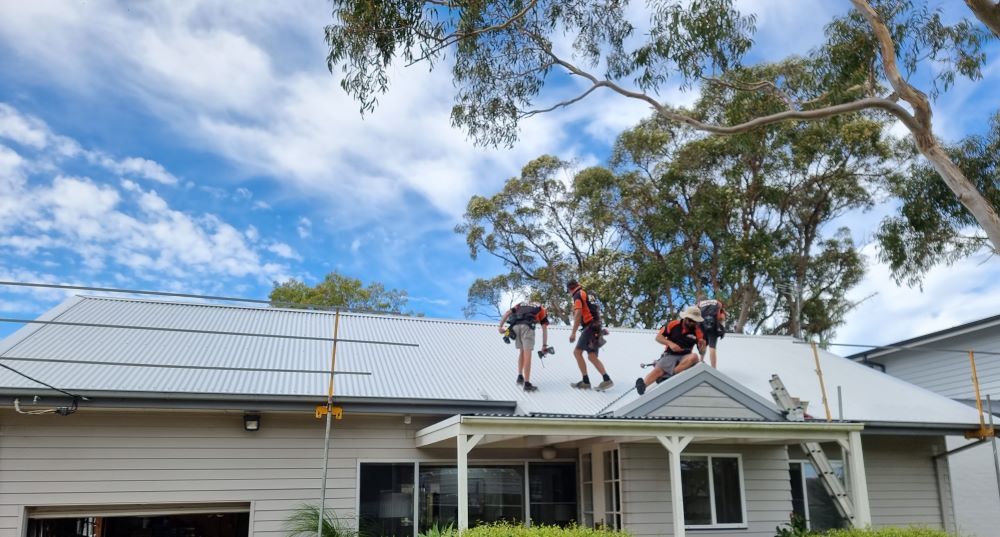

If your gutters overflow during heavy rain, if a significant portion of your roof drains into a single downpipe, or if you are installing a new metal roof while your existing gutters are in poor condition, you likely require larger gutters. The National Construction Code of Australia outlines how eaves gutters should be sized based on local rainfall patterns and the area of the roof serviced by each downpipe.

This comprehensive guide from AWS Roofing clarifies how to determine the appropriate gutter size for your Central Coast home, the benefits of upgrading to larger gutters and additional downpipes, and how to identify when your gutters need replacing instead of just patching them up.

Essential Insights

• Gutters must be sized according to the 5-minute rainfall intensity for the area, as specified in the ABCB Housing Provisions, Part 7.4, which considers a 5% annual exceedance probability.
• Part 7.4 does not specifically mention any towns in the Central Coast area. The nearest listed locations are Newcastle at 225 mm/h and Avalon, Sydney, at 210 mm/h.
• Each downpipe should not service more than 12 metres of gutter length.
• Signs of rust, sagging, or overflow indicate that it is time to replace your gutters.

What Benefits Do Larger Gutters and Downpipes Provide?

Larger gutters and additional downpipes enhance your roof's drainage capacity, allowing it to handle more water before overflowing. Gutter sizing is based on two primary factors: the design rainfall intensity and the area of the roof that drains into each downpipe.

• Increased Water Capacity: A larger gutter profile can manage more water, reducing the likelihood of spillage over the front.
• Reduced Roof Area per Downpipe: By adding more downpipes, each one services a smaller area of the roof, improving efficiency.
• Effective Water Diversion: Properly sized gutters with overflow provisions ensure that water is directed away from your home’s walls and fascia, preventing potential damage.

How Can You Determine If Larger Gutters Are Necessary?

Begin by observing your gutters during heavy rainfall. If water spills over the front edge, runs down the walls, or pools around the house, this indicates that your gutters or downpipes are inadequate. Next, evaluate your roof configuration. A long roofline or a large roof area draining into a single downpipe will contribute more water to that gutter compared to a smaller, well-served section.

If you are considering a new roof, it’s an opportune time to assess your gutters as well. You can find more details in our guide to larger gutters and gutter replacement for heavy rain.

How Is Gutter Sizing Calculated for Homes on the Central Coast?

The sizing of gutters is determined by the local 5-minute rainfall intensity and the roof catchment area linked to each downpipe. According to the ABCB Housing Provisions, Part 7.4 Gutters and Downpipes (NCC 2022), eaves gutters must be capable of managing rainfall at the intensity specified in Table 7.4.3d for a 5% annual exceedance probability. Overflow measures are designed to accommodate a 1% annual exceedance probability. The NCC 2022 edition remains in effect in NSW until NCC 2025 becomes active on 1 May 2027. The Part 7.4 values in this guide apply to both editions.

Table 7.4.3d does not mention any Central Coast towns. The closest areas listed are Newcastle to the north at 225 mm/h for a 5% annual exceedance probability and 316 mm/h for 1%, and Avalon, Sydney, to the south at 210 mm/h and 287 mm/h. Table 7.4.3a correlates gutter sizes with the respective rainfall intensity and the area of the roof draining into each downpipe.

This portion of the Housing Provisions also details proper installation methods for eaves gutters:

• Fall Requirement: At least 1:500.
• Bracket Placement: Fixed at stop ends and corners, and spaced no more than 1.2 metres apart.
• Overflow Measures: These measures must direct water away from the building, preventing ponding, entry, or damage, even if the stormwater system is blocked.

Box gutters are addressed separately, with the Housing Provisions allowing for the use of AS/NZS 3500.3 to determine their minimum sizes, falls, and overflow measures. More details can be found in our guide to types of guttering, including fascia and box gutters.

The Impact of Roof Size, Downpipes, and Larger Gutters

The size of your roof is crucial as gutter sizing depends on the area of the roof serviced by each downpipe. The Housing Provisions stipulate that a downpipe should not handle more than 12 metres of gutter length and should be positioned as close as possible to valley gutters. Insufficient or poorly situated downpipes often lead to drainage problems.

For homes with long rooflines or multiple levels, installing additional downpipes or increasing their size allows for better water management, ensuring that excess volume flows into the stormwater system rather than accumulating in the gutter.

Managing Leaf Litter, Gutter Guards, and Blockages

Leaf litter can have significant implications; even well-sized gutters will fail to function properly if obstructed. The Housing Provisions state that eaves gutters are designed to remove water from a 5% annual exceedance probability rainfall event as long as they remain unblocked. If your home is surrounded by large trees, such as gum trees, inspect your gutters after heavy leaf fall.

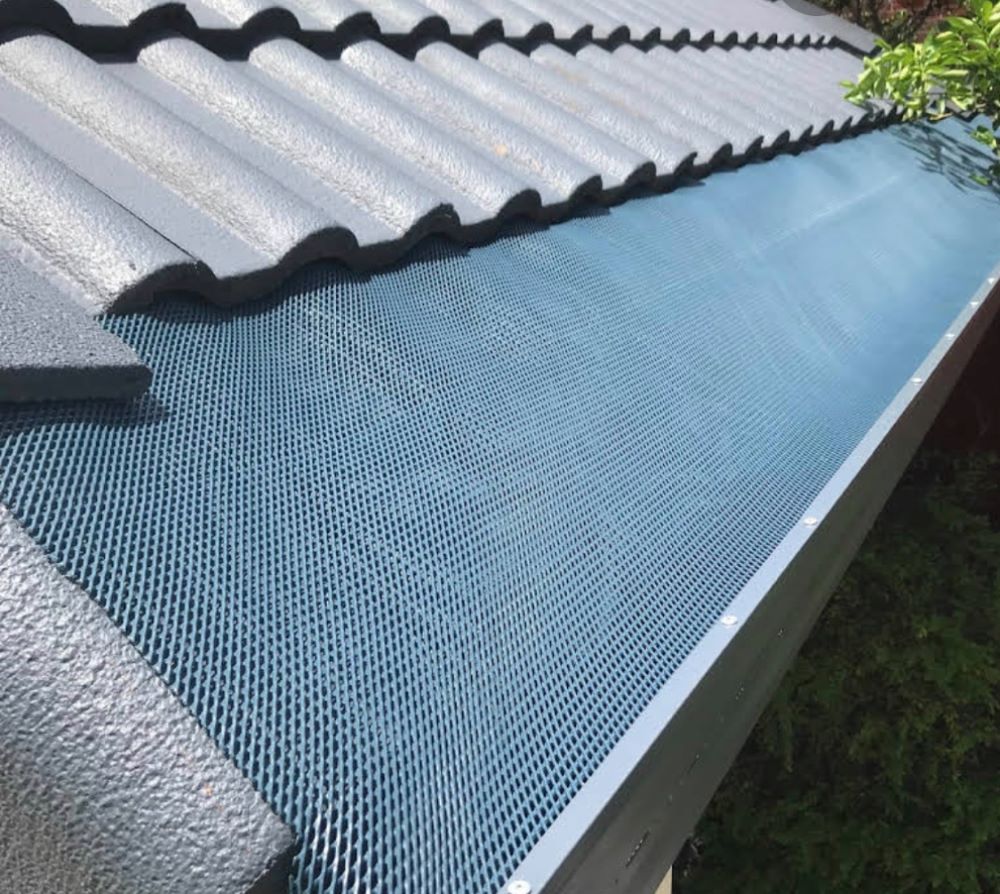

Accumulated leaf litter and stagnant water can accelerate rusting. For homes with heavy leaf fall, larger gutters paired with gutter guards will help maintain proper water flow. Gutter guards can be installed when we replace your gutters. Our guide on the damage caused by blocked gutters outlines the consequences of water being unable to drain properly.

When Should You Replace Gutters Instead of Just Patching?

If your gutters are rusted and beyond repair, it’s time for a replacement. Coastal salt can corrode metal, and once gutters begin leaking at the joints or sagging between brackets, patch repairs often fail within a season. This is usually the point where installing new gutters, tailored to your roof’s specifications, is a more sensible option than another round of temporary fixes.

You should consider replacing your gutters when you observe:

• Rust or Holes: Water seeps through even when the gutter appears intact.
• Sagging or Gaps: The gutter has detached from the fascia and is no longer positioned at the correct fall.
• Overflow During Heavy Rain: Water spills over the back of the gutter and runs down the walls.
• Signs of Water Damage Inside: Stained ceilings or fascia rot near the roofline.

When you choose to replace your gutters through AWS Roofing on the Central Coast, we take care of removing and disposing of the old gutters, installing new Colorbond gutters with the correct fall, and providing fresh brackets and fixings instead of reusing old ones. We also inspect your downpipes and fascia to ensure proper water drainage. If you’re replacing your gutters, now is the perfect opportunity to upgrade to a larger profile.

Are Larger Gutters More Effective?

Larger gutters are more effective when your current gutters cannot accommodate the water volume from your roof during heavy rain. It is essential that the gutters maintain the appropriate fall, include sufficient downpipes in optimal locations, feature overflow measures, and allow for unobstructed water flow, as outlined in Part 7.4 of the Housing Provisions.

Can I Upgrade My Gutters to Manage Higher Water Flow?

Absolutely. You can upgrade to a larger gutter profile, add downpipes, or do both. Our guttering page features profiles such as the 115 mm Ace Quad and the 150 mm Half Round, which ACE indicates offer greater water capacity than traditional gutters. We customise the profile and colour to match your roof and fascia.
